| Image Sensor | 5 MP CMOS |
|---|---|
| Signal System | PAL/NTSC |
| Resolution | 2560 (H) × 1944 (V) |
| Frame Rate | TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps |
| Min. Illumination | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50, 000 s |
| Lens | 2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed lens |
| Field of View | 2.4 mm, horizontal FOV: 110°, vertical FOV: 81°, diagonal FOV:137° |
| Lens Mount | M12 |
| Day & Night | ICR |
| WDR (Wide Dynamic Range) | Digital WDR |
| Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360° |
HD-TVI Camera, Prama, Security Products

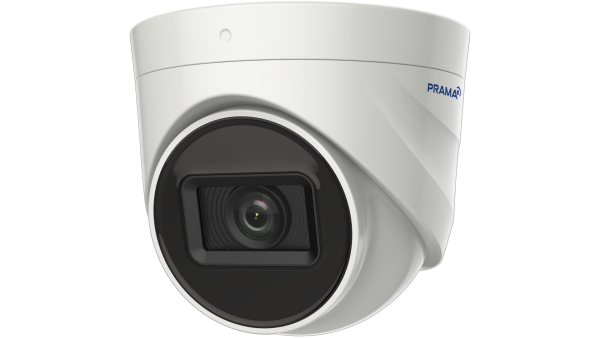

PT-HTH702E-ITPF
- 5 MP, 2560 × 1944 resolution
- 4 mm, 2.8 mm, 3.6 mm, 6 mm fixed focal lens
- Smart IR, up to 20 m IR distance
- 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
